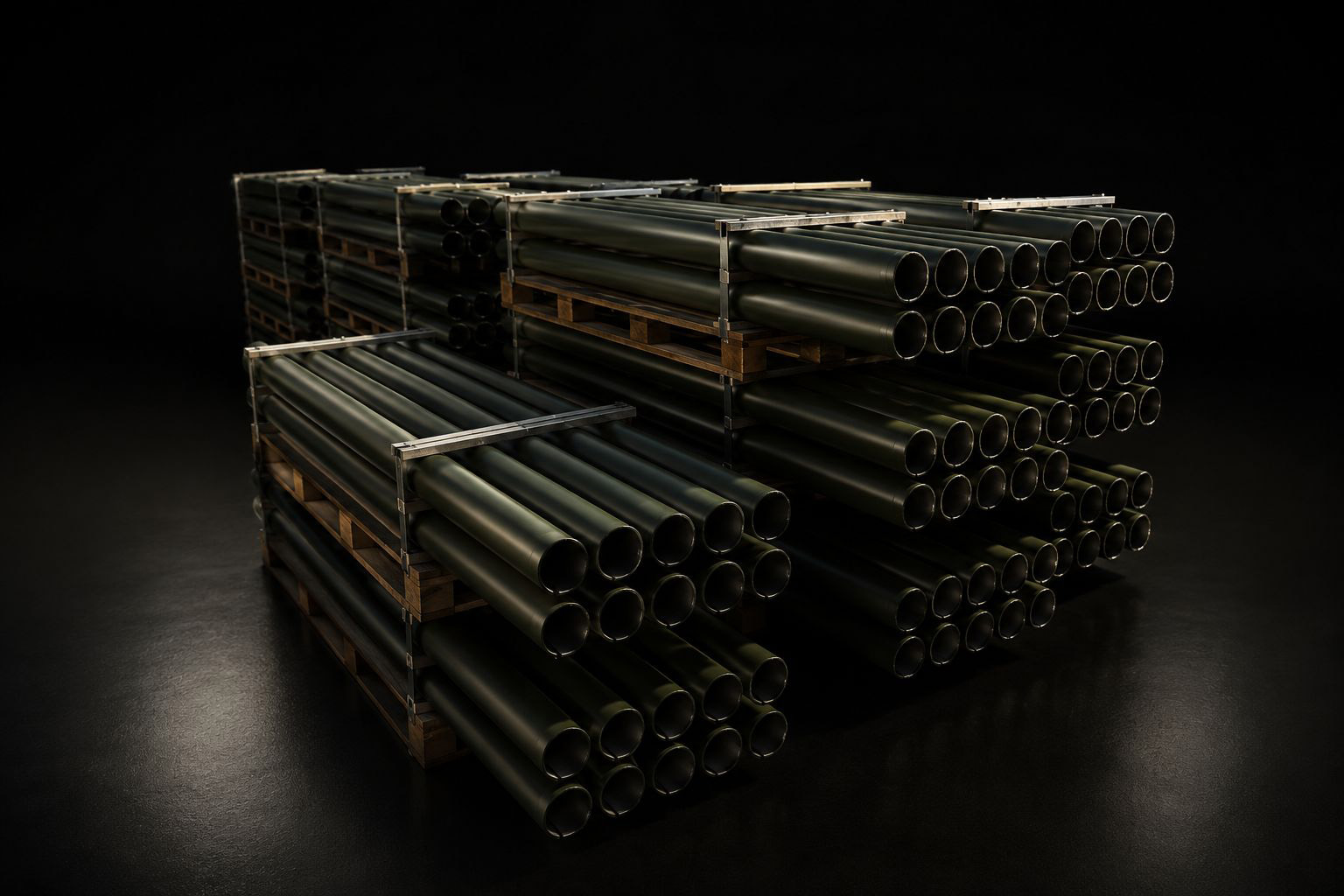

Launcher Tubes
Designed for Accuracy, Durability and Operational Flexibility
HADES produces launcher tubes in the calibres 57 mm, 107 mm and 122 mm. These tubes are available in Classic, Semi-Classic and our patented Sandwich version, an innovative construction that is unique within the international MLRS market.
Sandwich tubes are constructed from a multilayer composite structure that combines extremely low weight with high structural rigidity and thermal stability. On the inside, there is a fine-grained rifling profile that stabilises the rocket in the first few metres of flight. This results in a tight flight path, minimal dispersion and high consistency in repeated firings.
The 57 mm tubes are a specialised segment within our portfolio and were developed for HADES Defense's C-UAS programme. These ultra-light, high-precision launcher tubes are designed for modern interception missions and other scenarios where mobility, responsiveness and precision are crucial. Their low mass allows them to be deployed on small or mobile platforms without compromising stability or durability.
All launcher tubes are manufactured from high-quality steels or ultra-light composite materials. They are designed to withstand intensive use without performance degradation. The number of tubes per pod can be fully configured, so that each end user receives a launcher solution tailored precisely to their operational requirements.
| Calibre | 57mm | 107mm | 122mm | |||
|---|---|---|---|---|---|---|
| BoringType | Sandwich | Sandwich | Semi Classic | Sandwich | Semi-Classic | Classic |
| Weight | 5.8 kg (±0.2) | 3.5 kg (±0.2) | 7 kg (±0.2) | 16.9 kg (±0.5) | 26 kg (±0.5) | 26.5 kg (±0.5) |
| Length | 2.035 mm | 920 mm | 920 mm | 2,930 mm | 2,950 mm | 2.996 mm |
MLRS platforms from HADES are available in various configurations and can be tailored to specific operational requirements. The modular design allows deployment in a variety of scenarios, from rapid interventions to long-term remote targeting.
